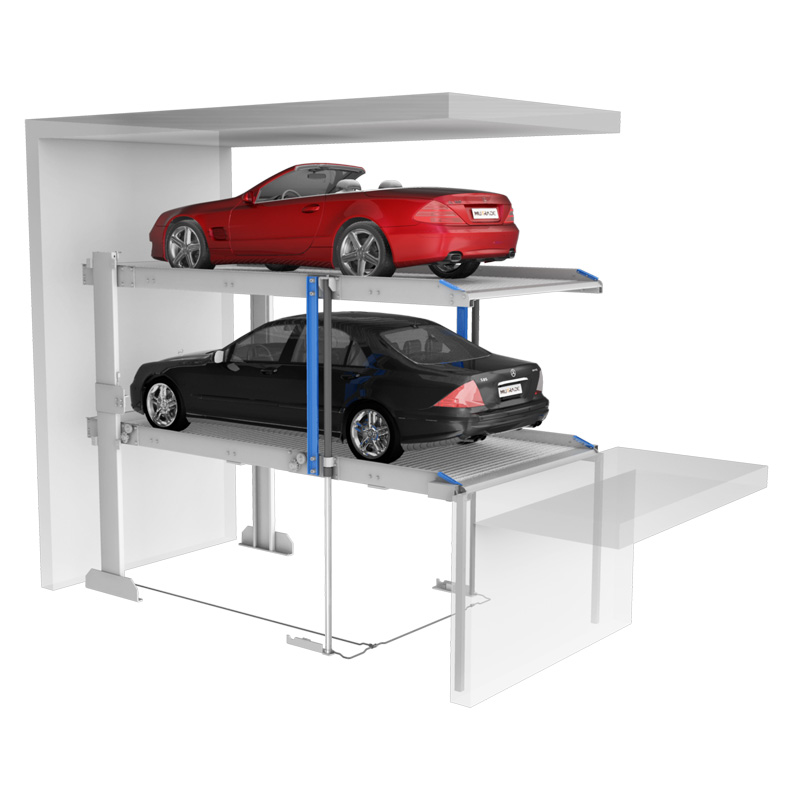

Starke 2127 and Starke 2121 are newly developed parking lifts of pit installation, offering 2 parking spaces above each other, one in pit and another on ground. Their new structure allows 2300mm entrance width within total system width of 2550mm only. Both are independent parking, no cars need to drive out before using the other platform. Operation can be achieved by wall-mounted key switch panel.

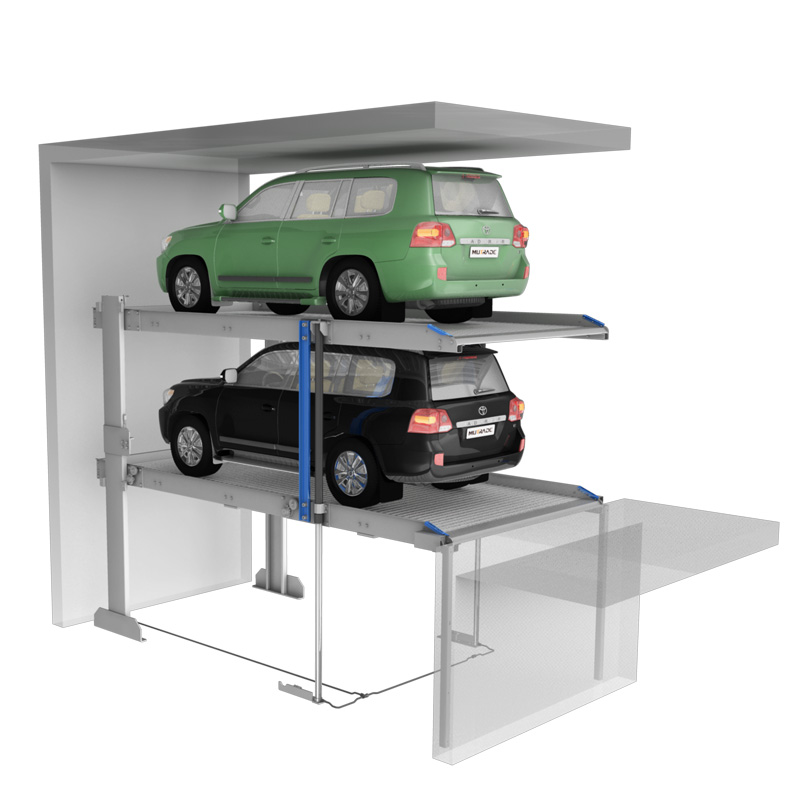

Starke 2127 and 2121 are Mutrade pit two post parking lifts, by platforms moving upwards from the pit or downwards to the pit, every vehicle can be parked or retrieved conveniently without moving any car else. Starke 2127/2121 is a kind of independent parking equipment, suitable for both commercial and residential parking purposes.
2 cars in a single unit (Starke 2127 and Starke 2121) and 4 cars in a double unit (Starke 2227 and Starke 2221) are both available
Parking space loads: 2100 kg and 2700 kg
Maximum 1700mm high vehicle can be parked in 1900mm deep pit, and 2300mm usable width is
provided in only 2550mm overall width for a single unit, to make full use of the limited space. More
available dimensions are optional for different project requirements.
The structure should be placed in a pit with certain dimensions and reinforced by fixing posts to walls.
|Model||Starke 2127||Starke 2121|
|Vehicles per unit||2||2|
|Available car length||5000mm||5000mm|
|Available car width||2050mm||2050mm|
|Available car height||1700mm||1550mm|

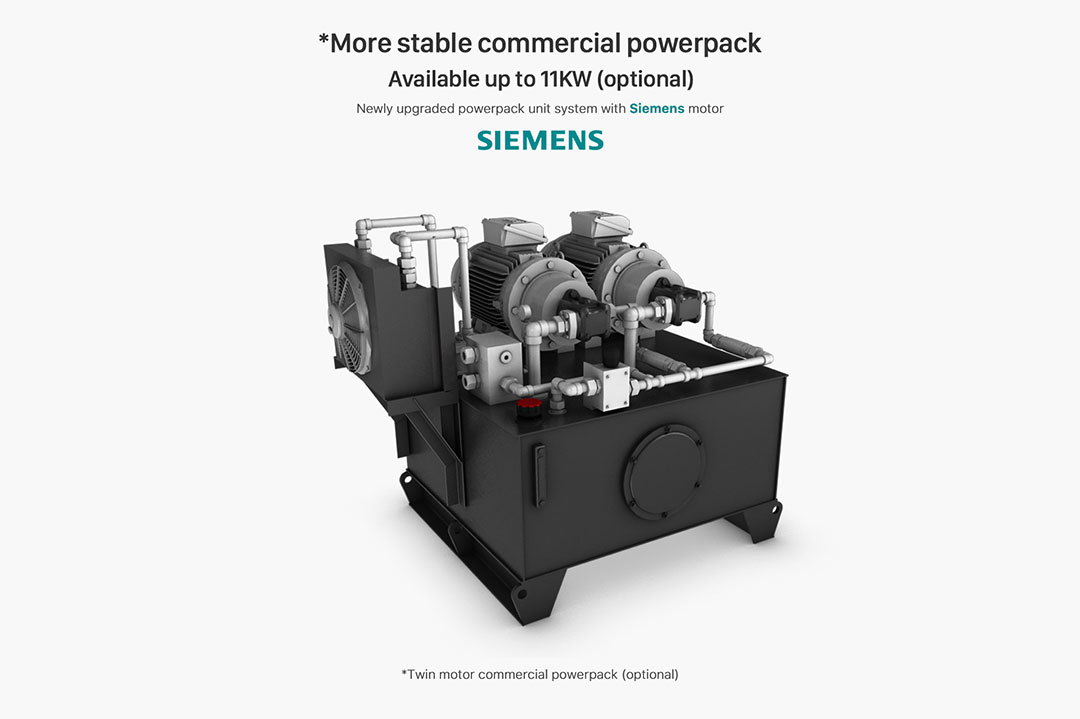

|Power pack||5.5Kw hydraulic pump||5.5Kw hydraulic pump|
|Available voltage of power supply||200V-480V, 3 Phase, 50/60Hz||200V-480V, 3 Phase, 50/60Hz|
|Operation mode||Key switch||Key switch|

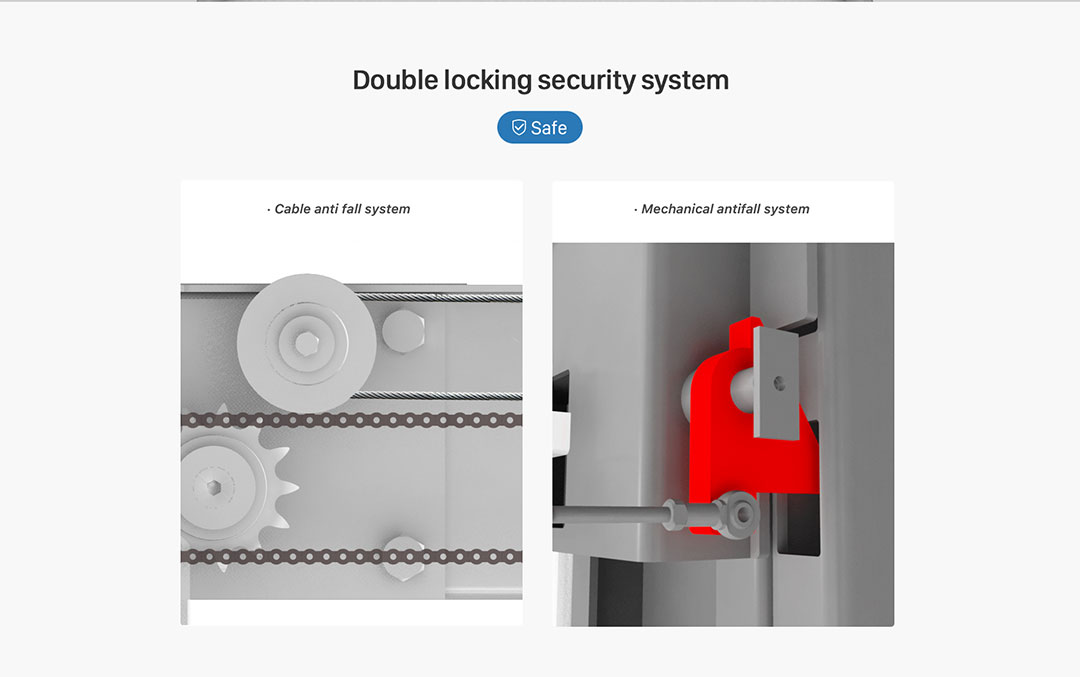

|Safety lock||Dynamic anti-falling lock||Dynamic anti-falling lock|
|Lock release||Electric auto release||Electric auto release|
|Rising / descending time||<55s||<30s|
|Finishing||Powdering coating||Powder coating|
A new comprehensive introduction of Starke-Park series
TUV compliant, which is the most authoritative certification in the world
Certification standard 2013/42/EC and EN14010
A new type of hydraulic system of German structure
Germany's top product structure design of the hydraulic system, the hydraulic system is
stable and reliable, maintenance free troubles, service life than the old products doubled.
New design control system
The operation is simpler, the use is safer, and the failure rate is reduced by 50%.
More beautiful and durable than observed, lifetime made more than doubled
Further intensification of the main structure of the equipment
The thickness of the steel plate and weld increased 10% compared with the first generation products
Gentle metallic touch, excellent surface finishing
After applying AkzoNobel powder, color saturation, weather resistance and
its adhesion are significantly enhanced
Great care is taken with the treatment
of lacquer face, in order to improve
the quality of products on surface
looking to the maximum extent
The weather resistance of the spray
powder has better performance under
special technology, which can stand
wear and tear
Superior chains provided by
Korean chain manufacturer
The life span is 20% longer than that of the Chinese chains
Galvanized screw bolts based on the
Longer lifetime, much higher corrosion resistance
Combination with ST2227
Laser cutting + Robotic welding
Accurate laser cutting improves the accuracy of the parts, and
automated robotic welding makes the weld joints more firm and beautiful
Welcome to use Mutrade support services
our team of experts will be on hand to offer help and advice
