Five Level Puzzle Car Parking Systems

Five Level Puzzle Car Parking Systems





One of the most space-saving puzzle parking system that maximum utilizes every inch of the space. By having one empty space on the ground and all middle floors, all spaces can be accessed directly and independently. The unique design of hydraulic-driven provides super-faster lifting speed comparing to motorized system, thus greatly shorten the waiting time. It can be built in various solutions by adding more grids on the side or back-to-back. Furthermore, options for different platform width, system length, and floor clearances are available to accommodate various vehicle types.


- For independent parking
- Hydraulic driven, super-fast lifting speed
- Above ground installation with 5 parking levels
- Platform load capacity: 2000kg or 2500kg
- Variable arrangements possible, from 3 to 6 grids wide (11 to 26 cars)
- Usable platform width: 2280mm as standard, and up to 2480mm
- Installation height: from 9572mm
- Vehicle size: Length 5000mm, Height 1550mm to 2050mm on request
- Mechanical anti-falling frame
- Multiple electrical safety devices
- Smart operation via ID card or key fob
- Security vertical gate is optional
- Fine finishing of power coating
- Roofing and façade can be added by customer to protect from weather


Model BDP-5
Levels 5
Lifting capacity 2500kg / 2000kg
Available car length 5000mm
Available car width 1850mm
Available car height 2050mm / 1550mm
Power pack 7.5Kw / 5.5Kw hydraulic pump
Available voltage of power supply 200V-480V, 3 Phase, 50/60Hz
Operation mode Code & ID card
Operation voltage 24V
Safety lock Anti-falling frame
Rising / descending time <55s
Finishing Powdering coating


A new comprehensive introduction of BDP series

Dimensional drawing


Design Showcase




Galvanized pallet

Standard galvanizing applied for daily
indoor use





Larger platform usable width

Wider platform allows users to drive cars onto platforms more easily





Seamless cold drawn oil tubes

Instead of welded steel tube, the new seamless cold drawn oil tubes are adopted
to avoid any block inside of tube due to welding





New design control system

The operation is simpler, the use is safer, and the failure rate is reduced by 50%.

High elevating speed

8-12 meters/minute elevating speed makes platforms move to desired
position within half minute, and dramatically reduces user's waiting time

8-12 meters/minute
≤ 30 seconds waiting time (average)

*Anti Fall Frame

Mechanical lock (never brake)

*Electric hook available as an option

*More stable commercial powerpack

Available up to 11KW (optional)

Newly upgraded powerpack unit system with Siemens motor

*Twin motor commercial powerpack (optional)

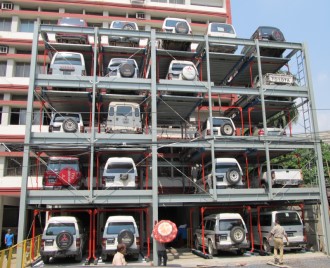

SUV parking available

The reinforced structure allows 2100kg capacity for all platforms

with higher available height to accommodate SUVs

Overlength, over height, over loading detection protection

A lot of photocell sensors are placed in different positions, the system
will be stopped once any car is over length or height. A car over loading
will be detected by the hydraulic system and not be elevated.

Lifting Gate

Gentle metallic touch, excellent surface finishing
After applying AkzoNobel powder, color saturation, weather resistance and
its adhesion are significantly enhanced


Superior motor provided by
Taiwan motor manufacturer

Galvanized screw bolts based on the European standard

Longer lifetime, much higher corrosion resistance

Laser cutting + Robotic welding

Accurate laser cutting improves the accuracy of the parts, and
automated robotic welding makes the weld joints more firm and beautiful

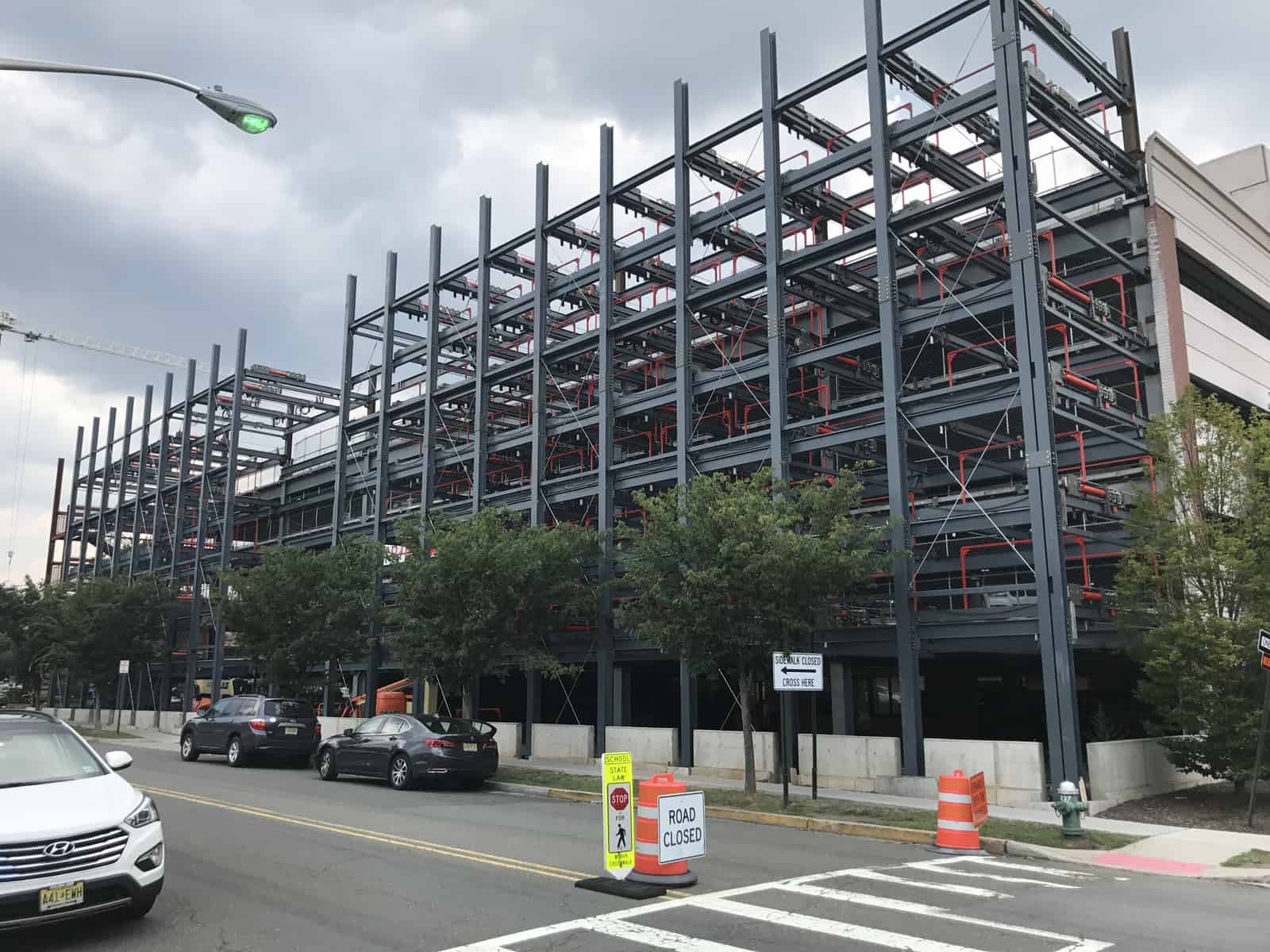

Project Reference
