Independent Cantilever Parking System with Pit

Independent Cantilever Parking System with Pit

Hydro-Park 7220

Details

Tags

Introduction

With our cantilever parking system with pit, we offer the perfect parking solution for two sedans. The magic is that when it comes to convenience and easy access to your parking space, the system offers independent parking. At the same time, the absence of support posts on the sides results in a smaller occupied parking space, providing more space for additional parking spaces, super-wide platform, as well as additional comfort when getting in and out of the car

Features

- For independent parking
- Free car door opening, excellent comfort
- Single unit for 2 cars
- Platform load capacity: 2000kg
- Platform width: 2400mm as standard, and up to 2600mm
- Pit width: 2500mm as standard, and up to 2700mm
- Pit depth: 2000mm as standard, and variable from
1800mm to 2200mm
- Vehicle height in low level: 1700 as standard
- Dual hydraulic cylinders drive
- Centralized commercial power pack is optional
- Galvanized platform plates, high heel friendly
- Fine surface coating supported by Akzo Nobel powders

Specifications

Model Hydro-Park 7220
Vehicles per unit 2
Lifting capacity 2000kg
Pit depth 1800mm-2200mm
Usable width 2400mm-2600mm
Available car height 1700mm
Available voltage of power supply 200V-480V, 3 Phase, 50/60Hz
Operation mode Key switch
Operation voltage 24V
Finishing Powdering coating

Dimensional drawing

7220

Design Showcase

New design control system

The operation is simpler, the use is safer, and the failure rate is reduced by 50%.

















Galvanized pallet

More beautiful and durable than observed, lifetime made more than doubled

















Starke-2127-&-2121_06

Laser cutting + Robotic welding

Accurate laser cutting improves the accuracy of the parts, and
automated robotic welding makes the weld joints more firm and beautiful

Project Reference

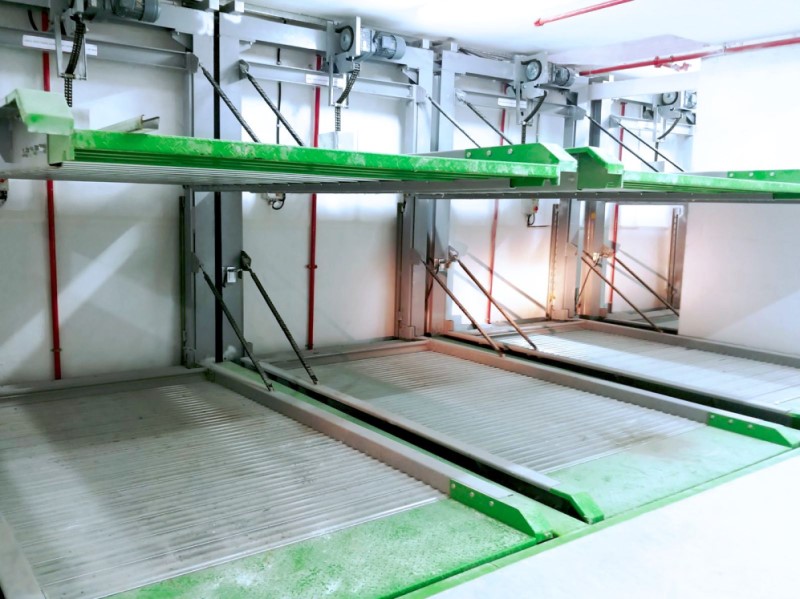

ptpp 2

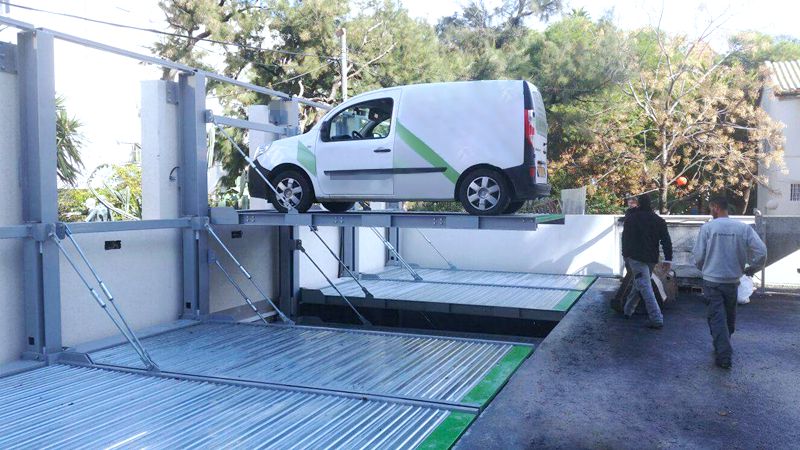

ptpp

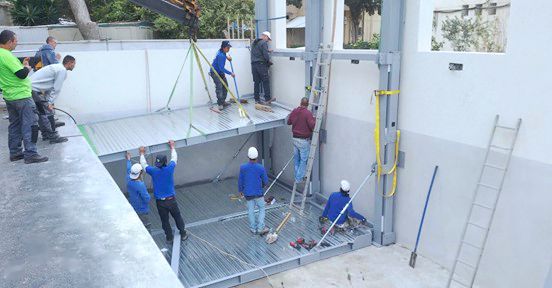

ptpp 1
