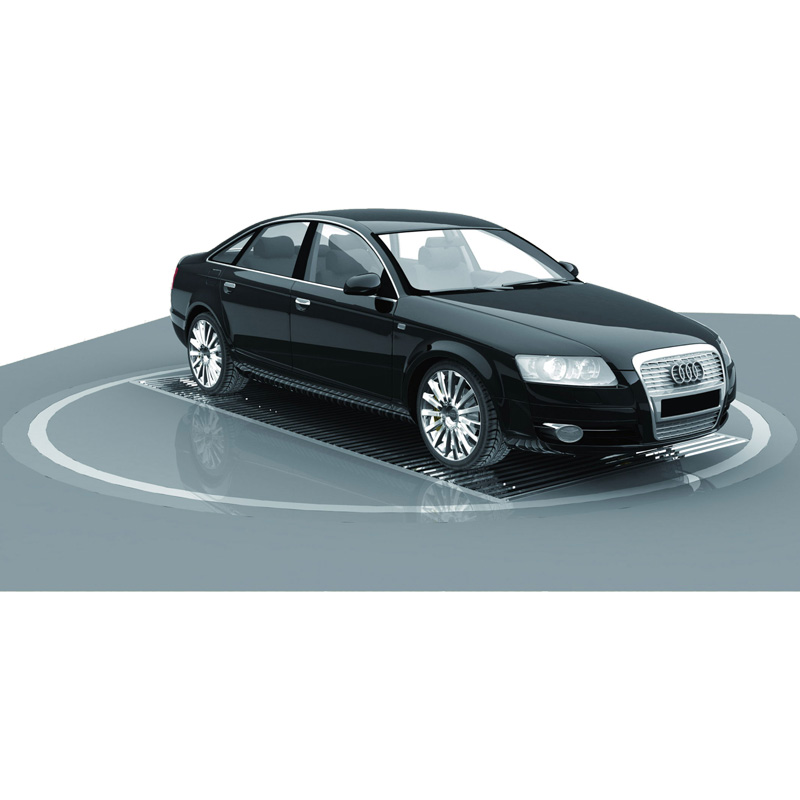

Turn to aesthetic and convenience with Mutrade car turntable! The CTT will quietly rotate your vehicle by max 360° and remote control is available. It can be multi-functional, designed either to give more freedom to parking when driving forward is hard to reach, or show you the best angle that makes your vehicle sparkling, or combined with a car stacker for the ultimate parking system. Dimensions and loading capacity can be tailor made to meet the demand best and accommodate various vehicles.
- For both limited access & car photography purposes
- 360 degrees rotation, clockwise and anti-clockwise
- Optional to install on ground or in pit
- Load capacity up to 10.0tons
- Platform size: bespoke to cater for all vehicles and suit all areas
- Thin platform design: 143mm as standard
- Simplified structural design, easy to install
- Remote control included
- A variety of surface options
- Surrounding ramp is optional for on-ground install
| Model | CTT-4.0 | CTT-4.5 | CTT-5.0 |
| Platform diameter (mm) | 4000mm | 4500mm | 5000mm |
| System height (mm) | 143mm | ||
| Loading capacity (kg) | 3000 | ||
| Drive mode | Electric motors | ||
| Motor quantity (pc) | 4 | ||
| Motor power (kw) | 0.12 | ||
| Turning speed (rpm) | 0.2-2 | ||
| Turning angle (°) | 360 | ||
| Surface finishing | Powder coating / Hot dip galvanized | ||
| Platform material | Steel checker plate / Aluminum checker plate / Stainless steel plate | ||
| Operation | Manual / remote | ||
| Power supply | 110-480v, 50/60hz, 1/3 phases | ||
| Color | Bespoke | ||
Can this product be customized?
Mutrade provides premium custom services for CTT series in terms of platform diameter, loading capacity, system height, platform material, etc. Please feel free to contact us to tailor your turntable.
Can this product be used outdoor?
Yes, CTT can be used outdoor. Please contact Mutrade sales for outdoor package options such as hot dip galvanized structure, motors and electrical components with higher IP rating, etc.
Can this product still operate in case power failure?
For safety considerations, the motors of CTT are equipped with brake function, it cannot be rotated manually.
What are the power requirements?
CTT series can work with either single phase starting from 110v, or three phases power starting from 208v.
Is it a must to install in pit?
NO, not necessarily. CTT can work perfectly installing on ground surface, which is quite common in photography or car display cases. When installed in garages or driveways for easy & safe exit of vehicles, we do recommend to install in pit.
How do you pack & ship?
All CTT parts are well wrapped by films and packed in wooden plywood box to make sure they are delivered to customers safe & sound. LCL container shipment is acceptable for a single unit order.
