Plane Moving Type Automated Shuttle Parking System

Plane Moving Type Automated Shuttle Parking System

MLP Series

Details

Tags

Introduction

Automated Plane Moving  Parking System is fully automated smart parking system, which adopts similar principle of paking and system structure like stereoscopic mechnical parking lot. Each floor of the system has a traverser which is responsible for moving the vehicles. Different parking levels are connected to the entrance by the elevator. To store the car, the driver just needs to stop the car at the entrance box and the whole car-accessing process will be done by the system automatically.



Maximum weight capacity of 2.5 tons, meeting the parking demand of a large and luxurious vehicle.
The number of levels is from a minimum of 2 to a maximum of 15.
Electric car charging devices are available optionally.
Entrance: ground floor for every car space. Also can be at the side way of 90 degree angle.
Layouts: ground layout, half ground half under underground layout and underground layout.
Entrance observation mirror, voice prompts, LED display etc.



Features

- High automation degree, instant treatment, continuous storage, high parking efficiency, can realize simultaneous access to vehicles.
- Advanced comb exchange technology. Adapted self-driving sliding comb frame driven by double transmission shaft and patent sliding power supply technology. Safe and stable.
- Space saving, flexible design, diverse modeling, less investment, low spending and maintenance cost, convenient control operation etc.
- Multiple safety detection such as the over-length and over-height make the whole parking process safe and efficient.
- Eco-friendness. No vehicle emissions, clean and green.
- Efficient use of available space. More cars are accommodated on the same area.
- Various safety measures to ensure the safety of people and vehicles.
- The final parking operation is fully automated reducing the need for staff.
- Vehicle theft and vandalism are no longer an issue and driver security is assured.
- The system is compact, making it ideal for areas where space is limited.



Scope of application

Wide scope of application. It is mainly used to aboveground or underground parking area with large number of car spaces.
This equipment can meet the requirements of above-ground or underground garage varying from 2 floor to the 15 floor garage, realizing automatic fast and safely vehicle access.
Ideal for outdoor parking, narrow parking area which needs to set the entrance at side and multi form combinatorial parking system.



Specifications

Car size(L×W×H) ≤5.3m×1.9m×1.55m
≤5.3m×1.9m×2.05m
Car weight ≤2350kg
Motor power & speed Lift 15-22kw Hydraulic speed-regulation 28-42m/min
Slide 0.2kw 9.5m/min
Carry 1. 5kw Frequency control 30m/min
Turn 2.2kw Frequency control 3.0rpm
Operation mode IC card/ automatic/ half automatic/ manual
Access mode Forward in, forward out
Power supply 3 phase 5 wires 380V 50Hz


















Project reference

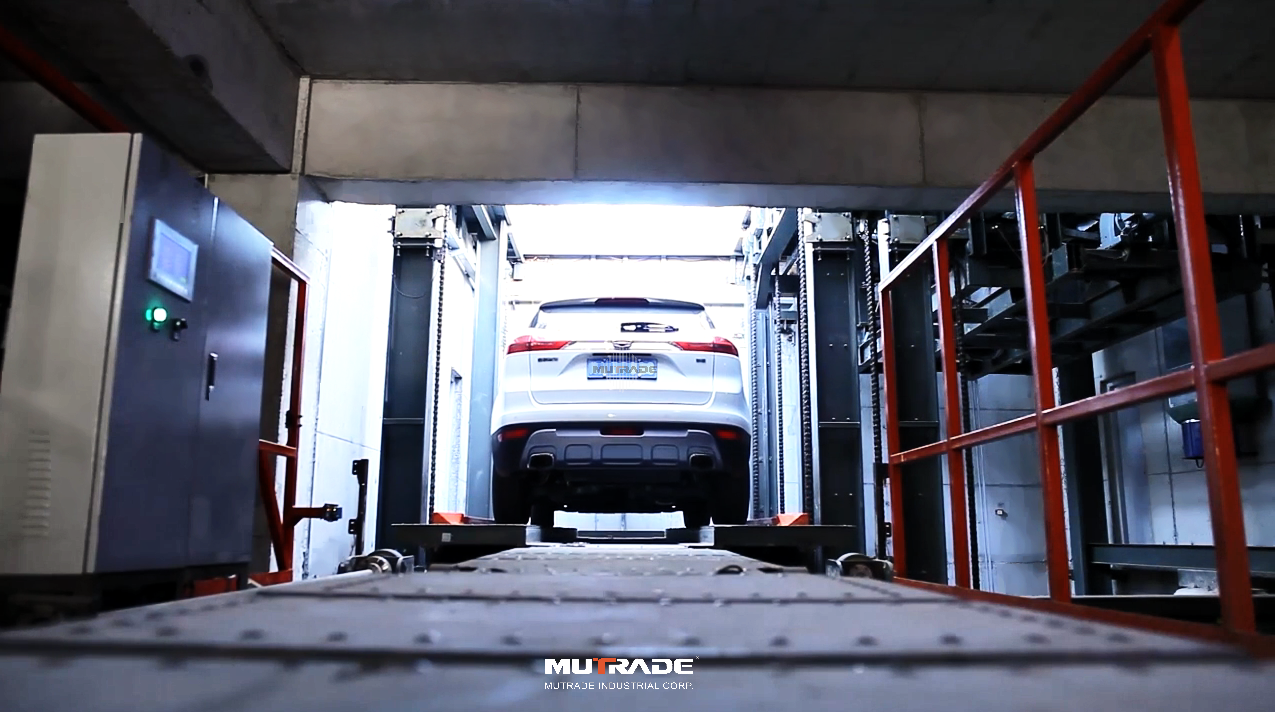

Fully automated parking system Mutrade automated robotic parking lot plane moving
E1179565-70FA-4DED-91DF-789E4A9D38D7

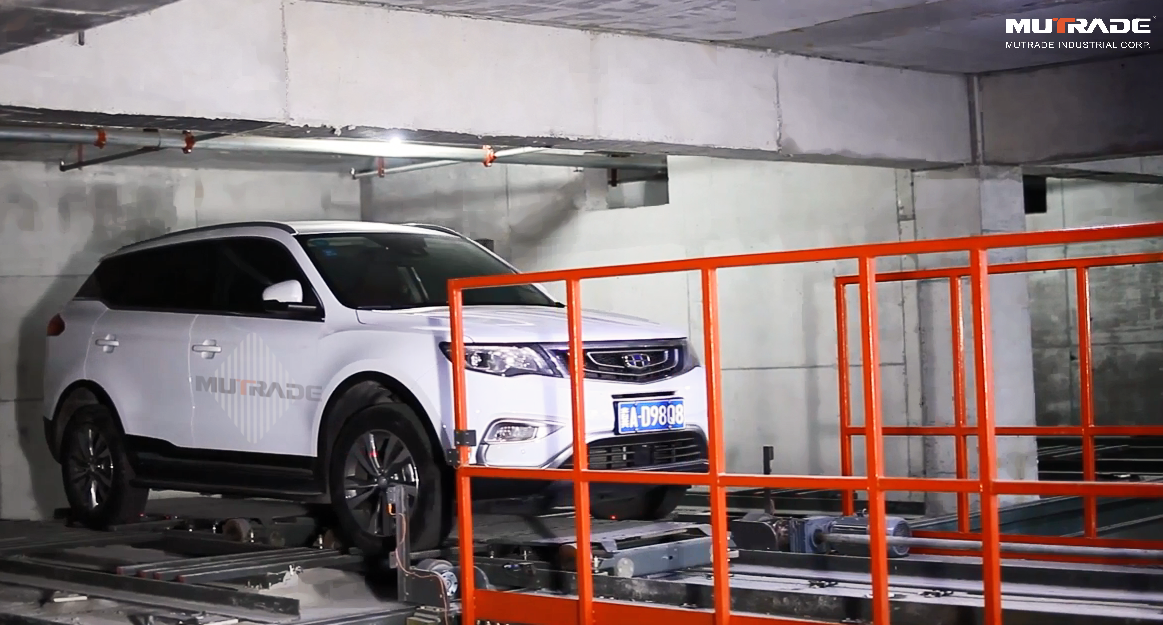

Fully automated parking system Mutrade automated robotic parking lot plane moving

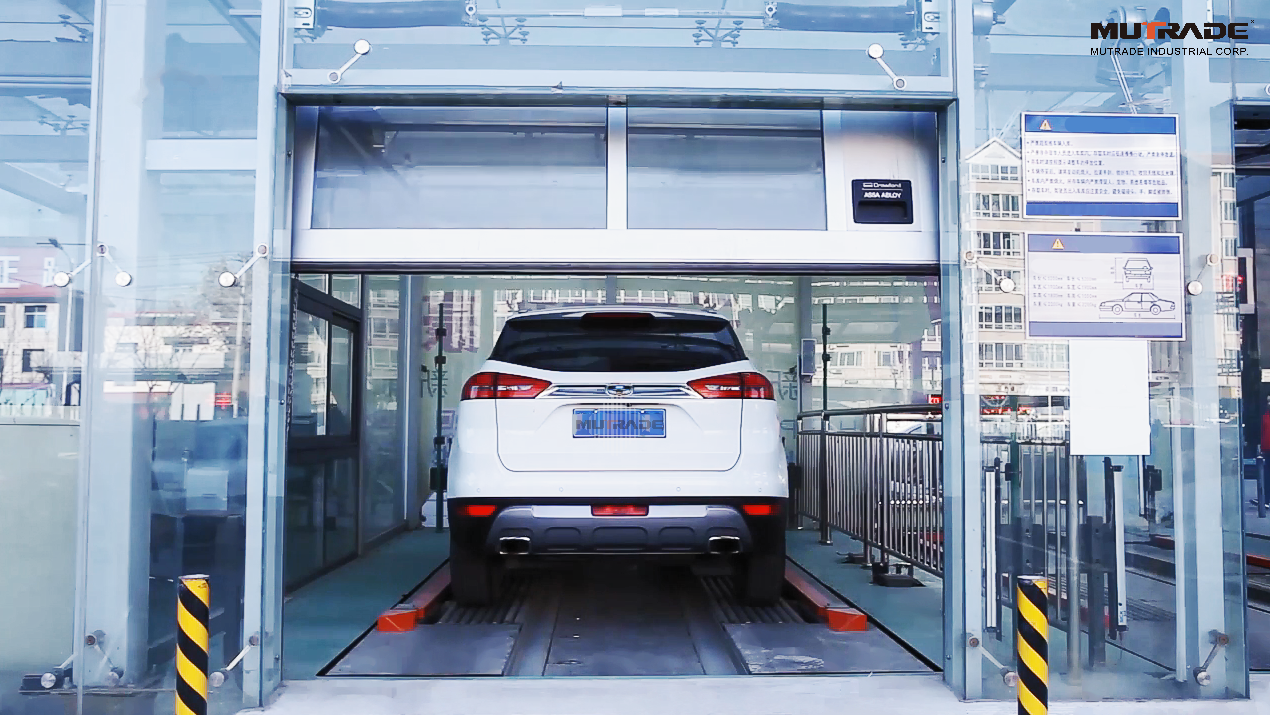

Fully automated parking system Mutrade automated robotic parking lot plane moving

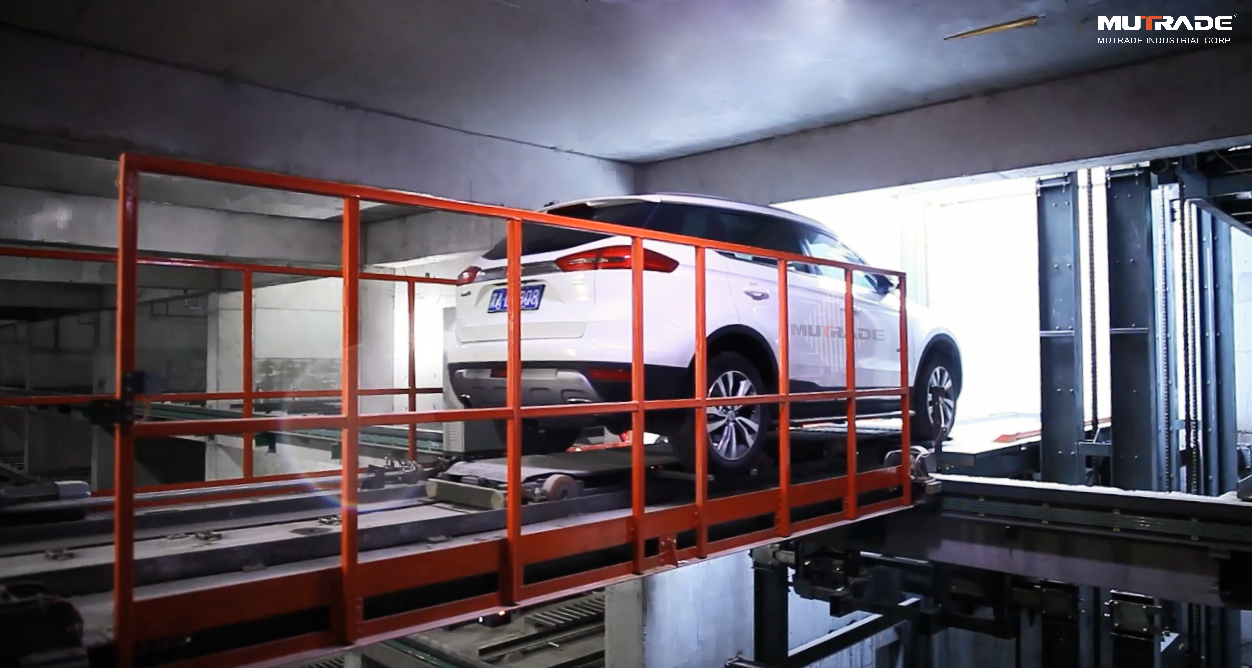

Fully automated parking system Mutrade automated robotic parking lot plane moving

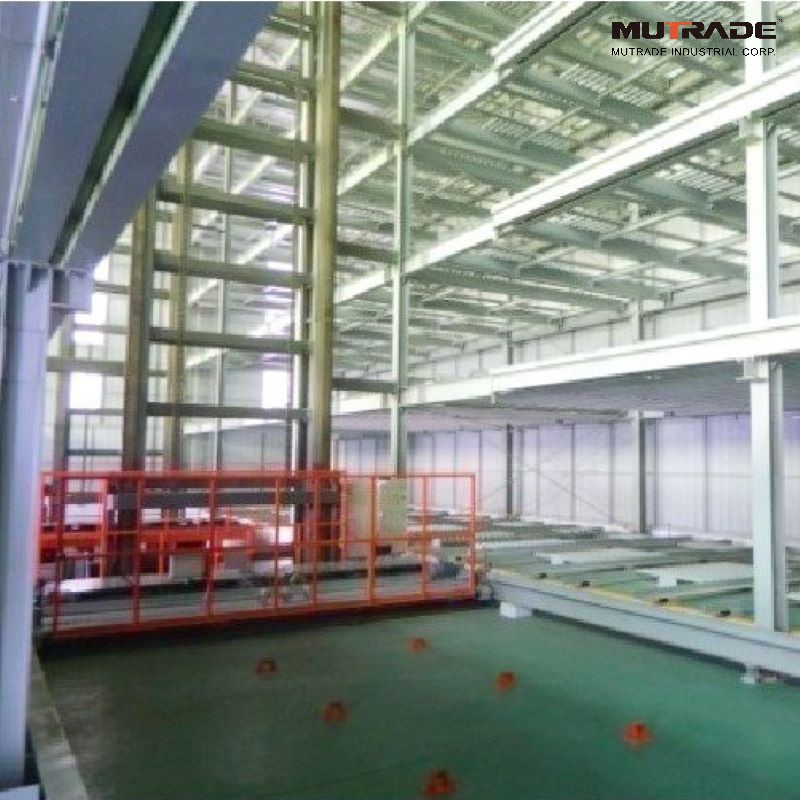

cabinet automatet parking system multo level mutrade
Fully automated parking system Mutrade automated robotic parking lot cabinet
