NEW! – Wider Platform 2 Post Mechanical Car Parking Lift

NEW! – Wider Platform 2 Post Mechanical Car Parking Lift

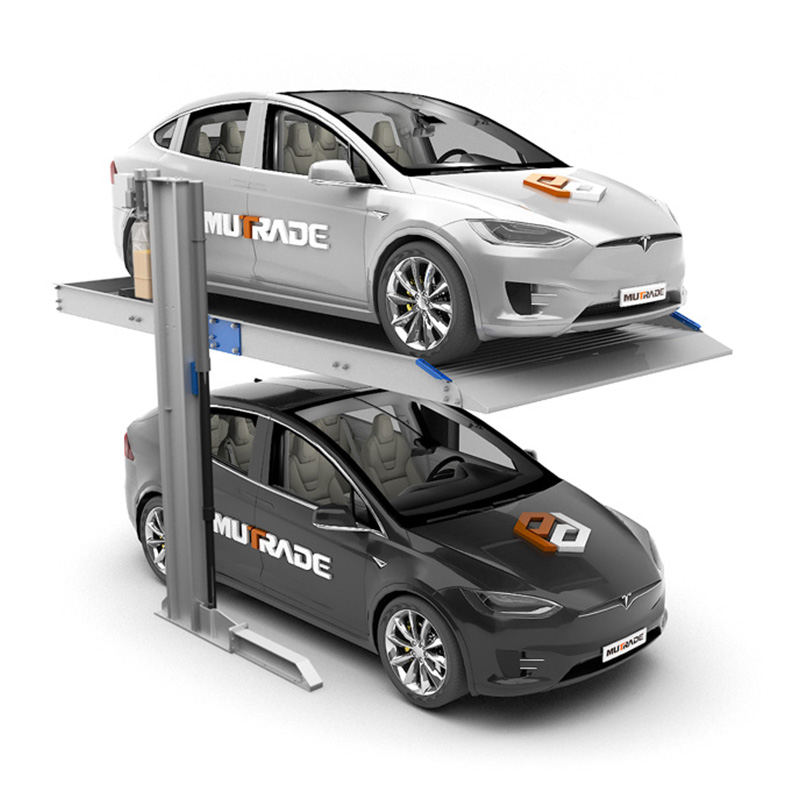

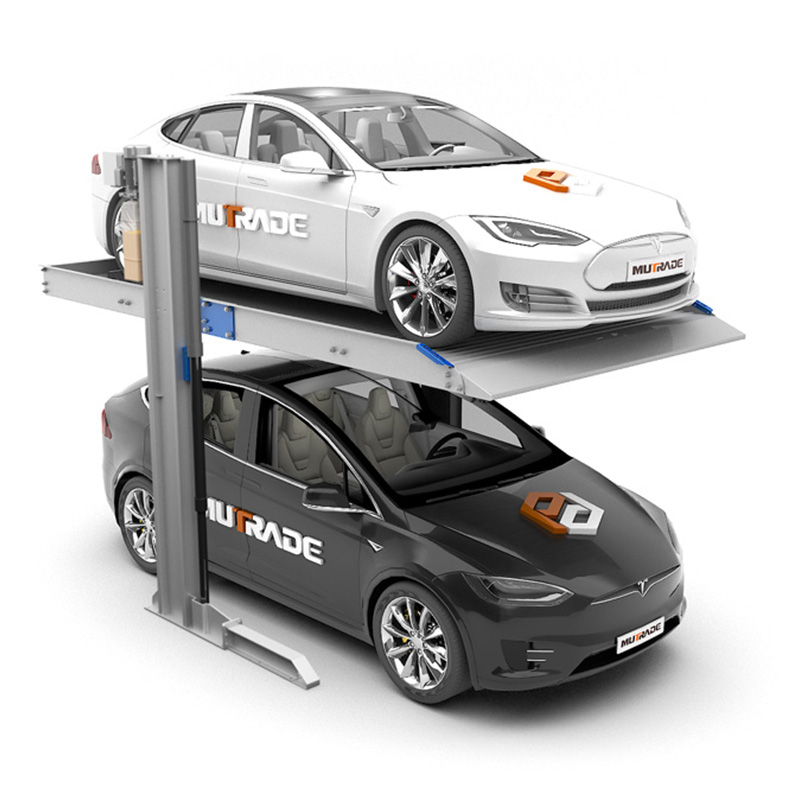

Starke 1127 & 1121

Details

Tags

Introduction

Starke 1127 and Starke 1121 are wholly new designed stackers by Mutrade with more ideal structure that offers 100mm wider platform than Hydro-Park 1127/1123 but within smaller installation space. Each unit provides 2 dependent parking spaces with the platform moving vertically only, ground car has to be moved to use the upper space of platform. Suitable for permanent parking, valet parking, car storage, or other places with attendant. In case of short time user only possible on lower platform, or with attendant or valet parking both levels are possible for short time user. When used indoor, operation can be achieved by wall-mounted key switch panel. For outdoor usage, control post is also optional.



Features

- Parking 2 cars above each other
- Lifting capacity 2300kg (Starke 1121) or 2700kg (Starke 1127).
- Standard platform width 2200mm, which can be maximized to 2500mm.
- Car heights on ground up to 2050mm.
- Direct drive by German structure cylinder.
- Mechanical anti-falling locks protect platform from falling all the way, and enable multiple stopping heights.
- Synchronization chain keep platform level under all conditions.
- 24v control circuit protects users from electric shock
- Galvanized waving plates ensure the platform in excellent performance of rust and skid resistance
- Anti-rust bolts & nuts passing 48hrs Salt Spray Test.
- Akzo Nobel powder coating provides long lasting surficial protection
- Top class quality guarantee (CE certified by German TUV)



Specifications

Model Starke 1127 Starke 1121
Lifting capacity 2700kg 2100kg
Lifting height 2100mm 2100mm
Usable platform width 2200mm 2200mm
System width 2529mm 2529mm
System height 3497mm 3293mm
Power pack 2.2Kw 2.2Kw
Available voltage of power supply 100V-480V, 1/3 Phase, 50/60Hz 100V-480V, 1/3 Phase, 50/60Hz
Operation mode Key switch Key switch
Operation voltage 24V 24V
Safety lock Dynamic anti-falling lock Dynamic anti-falling lock
Lock release Electric auto release Electric auto release
Rising / descending time <55s <55s
Finishing Powdering coating Powder coating



Starke 1121

* A new comprehensive introduction of ST1121 & ST1121+

























*  ST1121+  is a superior version of ST1121

TUV compliant

TUV compliant, which is the most authoritative certification in the world
Certification standard 2013/42/EC and EN14010

























* A new type of hydraulic system of German structure

Germany's top product structure design of the hydraulic system, the hydraulic system is
stable and reliable, maintenance free troubles, service life than the old products doubled.









*  Available on the Starke series only

* Galvanized pallet

More beautiful and durable than observed, lifetime made more than doubled

* Better galvanized pallet is available
on the ST1121+ version













Zero accident security system

All-new upgraded security system, really reaches zero
accident with coverage of 1177mm to 2100mm

*More stable commercial powerpack
Available up to 11KW (optional)
Independent powerpack available for ST1121 as well
Newly upgraded powerpack unit system with Siemens motor

*Twin motor commercial powerpack (optional)

Further intensification of the main structure of the equipment

The thickness of the steel plate and weld increased 10% compared with the first generation products













Gentle metallic touch, excellent surface finishing
After applying AkzoNobel powder, color saturation, weather resistance and
its adhesion are significantly enhanced

Rich color

Great care is taken with the treatment
of lacquer face, in order to improve
the quality of products on surface
looking to the maximum extent

Strong adhesion

The weather resistance of the spray
powder has better performance under
special technology, which can stand
wear and tear

Superior chains provided by
Korean chain manufacturer

The life span is 20% longer than that of the Chinese chains

Galvanized screw bolts based on the
European standard

Longer lifetime, much higher corrosion resistance



Modular connection, innovative shared column design









According to the use of random combination Unit A + N×Unit B…





Usable measurement

Unit: mm

 Smallest overall width
with largest usable width
in the market

Laser cutting + Robotic welding

Accurate laser cutting improves the accuracy of the parts, and
automated robotic welding makes the weld joints more firm and beautiful

Unique optional stand-alone stand Suites

Exclusive research and development to adapt to various terrain standing kit, equipment installation is
no longer restricted by the ground environment.































Welcome to use Mutrade support services

our team of experts will be on hand to offer help and advice

QINGDAO MUTRADE CO., LTD.
QINGDAO HYDRO PARK MACHINERY CO., LTD.
Email : inquiry@hydro-park.com
Tel : +86  5557 9608
Fax : (+86 532) 6802 0355
Address : No. 106, Haier Road, Tongji Street Office, Jimo, Qingdao, China 26620
