Introduction

Mutrade car parking tower, ATP series are a type of automatic tower parking system, that is made of a steel structure and can store 20 to 70 cars at multilevel parking racks by using high speed lifting system, to extremely maximize the usage of limited land in downtown and simplify the experience of car parking. By swiping IC card or inputting the space number on operation panel, as well as shared with information of parking management system, the desired platform will move to entrance level of the parking tower automatically and quickly.

The tower parking fit for both sedans and SUVs
Capacity of each platform is up to 2300kg
The tower parking system can accommodate minimum 10 levels, and maximum 35 levels
Each parking tower occupies about 50 square meters footprint only
The car parking tower can be widened to 5 cars cross to double the parking space
Both stand-alone type and built-in type is available for tower parking system
Programed automatic PLC control
Operation by IC card or code
Optional embedded turntable makes convenient to drive in/out from the car parking tower
Optional safety gate protects cars and the system from accidental entrance, theft or sabotage

Features

1. Space saving. Praised as the future of parking, tower car parking systems are all about space saving and maximizing the parking capacity within the smallest area as possible. The car parking tower is especially beneficial for projects with a limited construction area since the tower parking system requires much less footprint by eliminating safe circulation in both directions, and narrow ramps and dark stairways for drivers. The parking tower is up to 35 parking levels high, providing max 70 car spaces within 4 traditional ground spaces only.

2. Cost saving. A tower parking system could be very cost-effective by reducing lighting and ventilation requirements, eliminating the manpower costs for valet parking services, and decreasing the investment in property management. Moreover, tower parking generates the possibility to increase projects ROI by using the extra real estate for more profitable purposes, like retail stores or additional apartments.

3. Additional safety. Another great benefit that tower car parking systems bring is safer and more secured parking experience. All the parking and retrieving activities are performed at entrance level with an ID card owned by driver him/herself only. Theft, vandalism or worse would never take place in the tower parking system, and the potential damages of scrapes and dents are fixed once for all.

4. Comfort parking. Instead of searching for a parking spot and trying to find out where your car parked, car parking tower provides much comfort parking experience than traditional parking. The tower car parking system is combination of a great many advanced technologies that work together seamlessly and uninterrupted. Sensing devices at entrance to open/shut door automatically, car turntable to ensure forward driving at all time, CCTV cameras to monitor system running, LED display & voice guide to assist driver parking, and most importantly, an elevator or robot that delivers your car directly to your face! 5. Minimal environmental impact. Vehicles are turned off before entering the tower parking system, so engines are not running during parking and retrieval, reducing the amount of pollution and emission by 60 to 80 percent.

Scope of applictions

This tower type of parking equipment is suitable for medium and large buildings, parking complexes, and guarantees high vehicle speed. Depending on where the system will stand, it can be of low or medium height, built-in or free-standing. ATP is designed for medium to large buildings or for special buildings for car parks. Depending on the wishes of the Customer, this system can be with a lower entrance (ground location) or with a middle entrance (underground-ground location).

And also the system can be made both as built-in structures in an existing building, or be completely independent. Automated parking systems are a modern and convenient way to solve many problems: there is no space or you want to minimize it, because ordinary ramps take up a large area; there is a desire to create convenience for drivers so that they do not need to walk on floors, so that the whole process occurs automatically; there is a courtyard in which you want to see only greenery, flower beds, playgrounds, and not parked cars; just hide the garage out of sight.

Automated parking systems are a modern and convenient way to solve many problems: there is no space or you want to minimize it, because ordinary ramps take up a large area; there is a desire to create convenience for drivers so that they do not need to walk on floors, so that the whole process occurs automatically; there is a courtyard in which you want to see only greenery, flower beds, playgrounds, and not parked cars; just hide the garage out of sight.

Specifications

Model ATP-35
Levels 35
Lifting capacity 2500kg / 2000kg
Available car length 5000mm
Available car width 1850mm
Available car height 1550mm
Motor power 15Kw
Available voltage of power supply 200V-480V, 3 Phase, 50/60Hz
Operation mode Code & ID card
Operation voltage 24V
Rising / descending time <55s

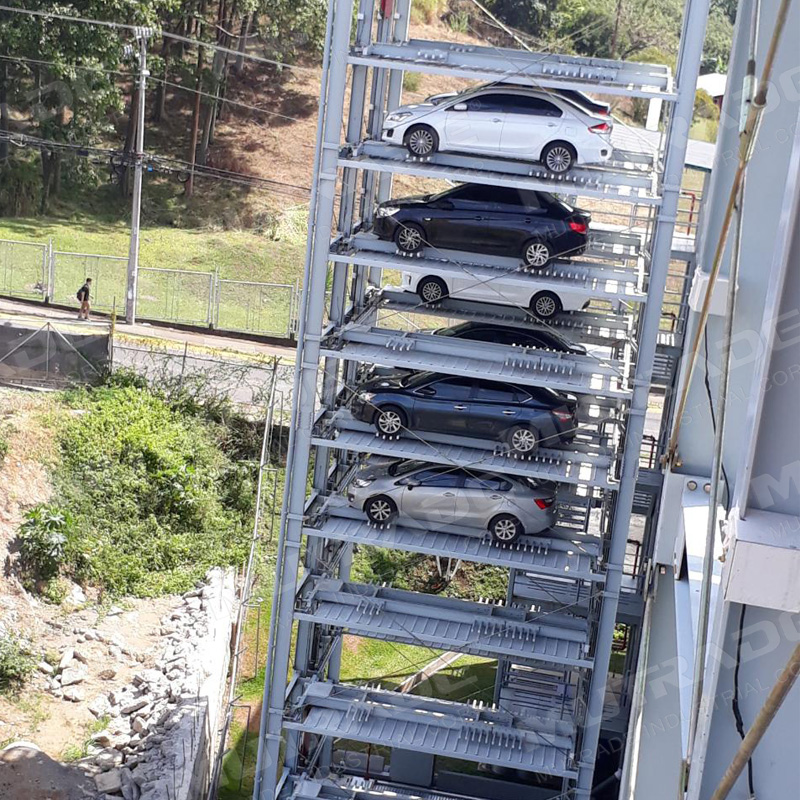

Project reference

2
3

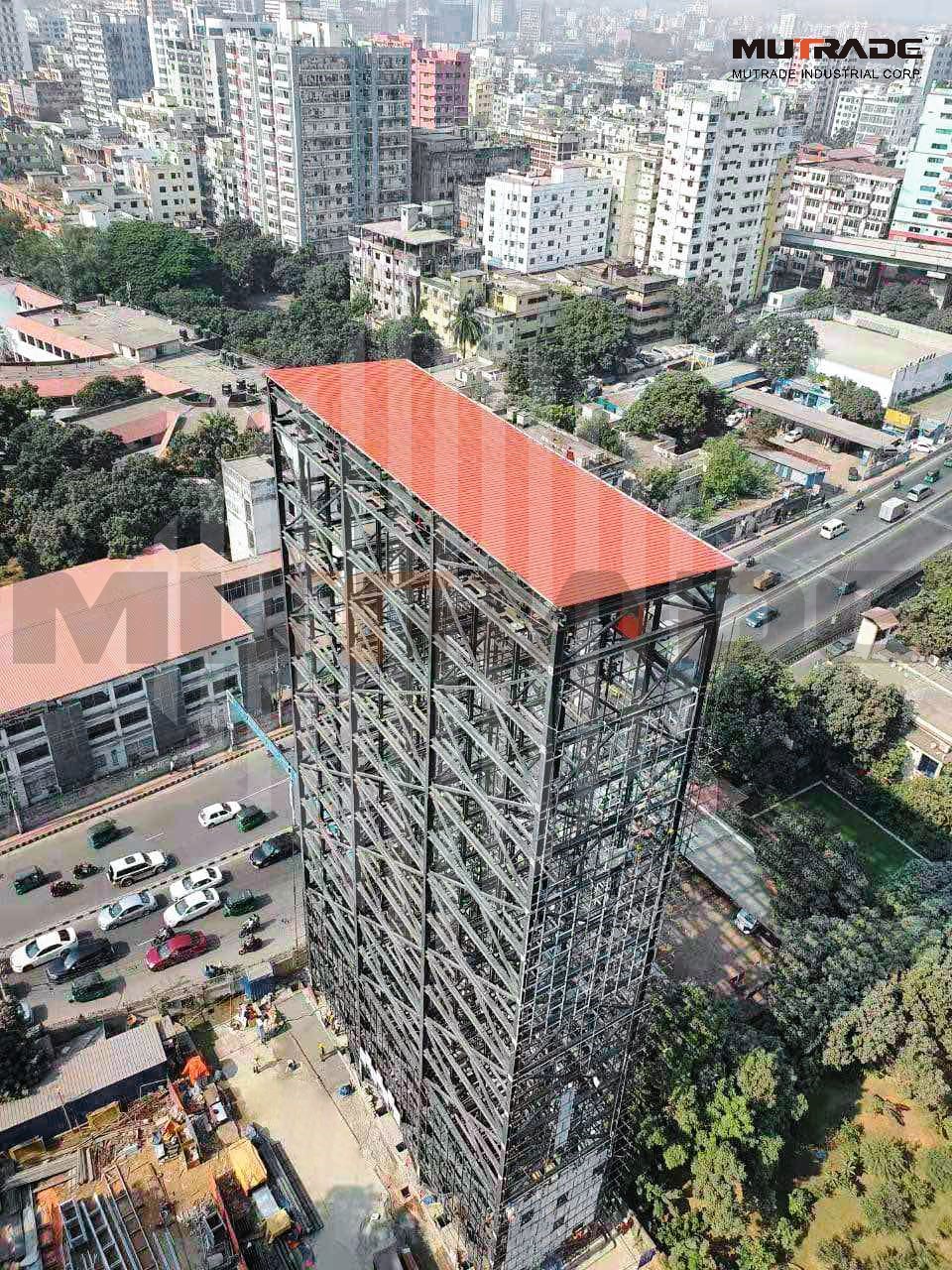

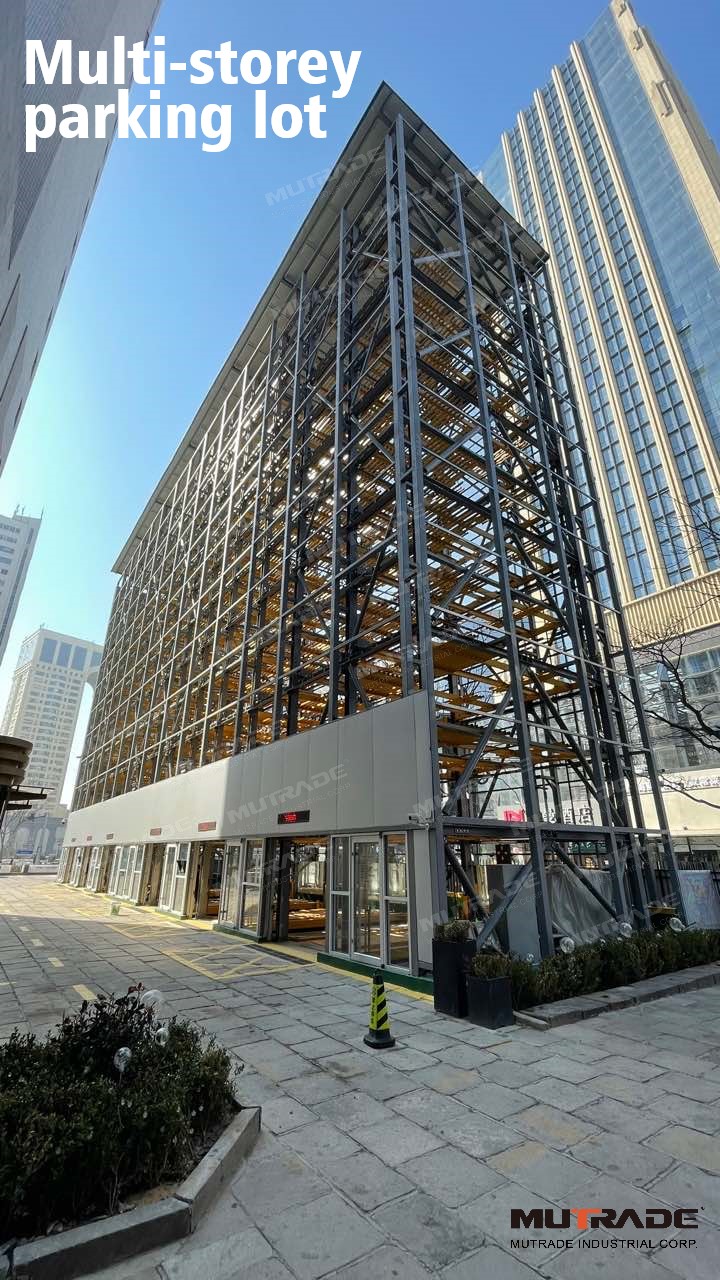

Mutrade tower parking system automated parking robotic system multilevet ATP
Mutrade tower parking system automated parking robotic system multilevel ATP
