4 Cars Independent Car Park Underground Parking System with Pit

4 Cars Independent Car Park Underground Parking System with Pit

Starke 2227

Details

Tags

Introduction

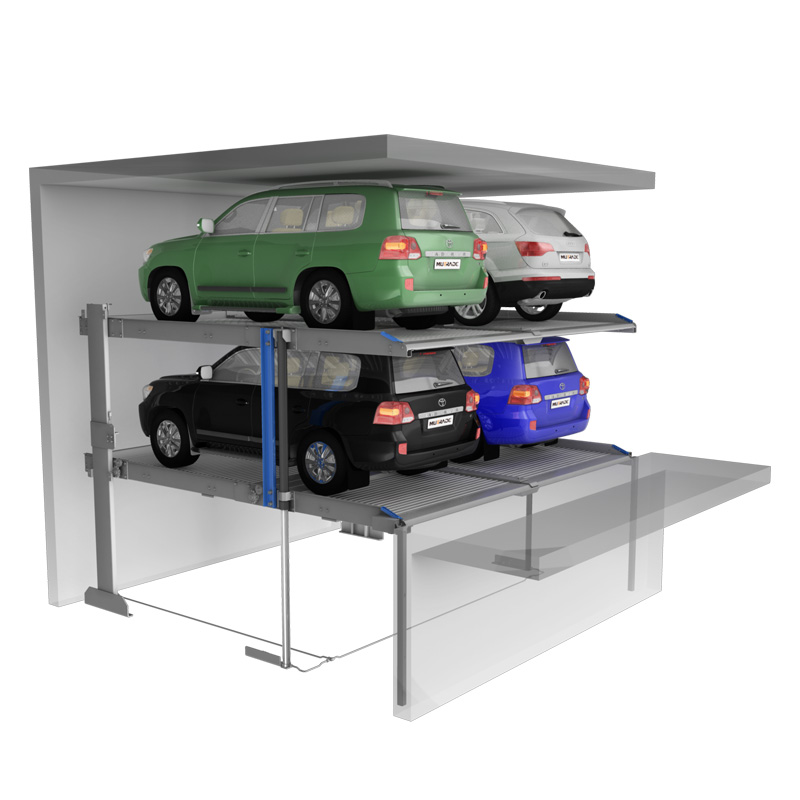

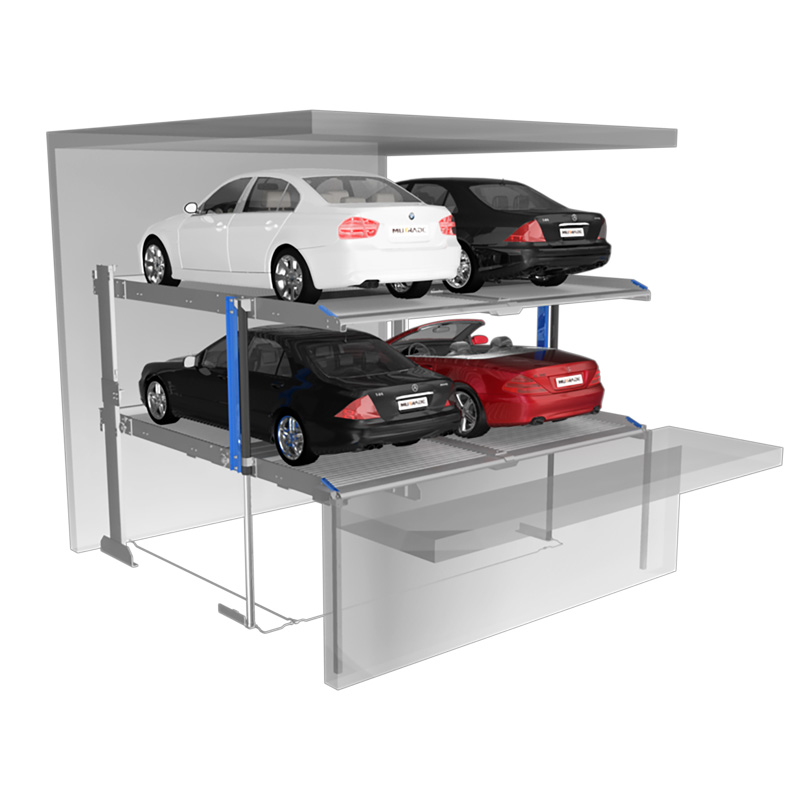

Starke 2227 is double system version of Starke 2127, offering 4 parking spaces in each system. They provide the maximum flexibility for access by carrying 2 cars on each platform without any barriers/structures in middle. They are independent parking lifts, no cars need to drive out before using the other parking space, suitable for both commercial and residential parking purposes. Operation can be achieved by wall-mounted key switch panel.

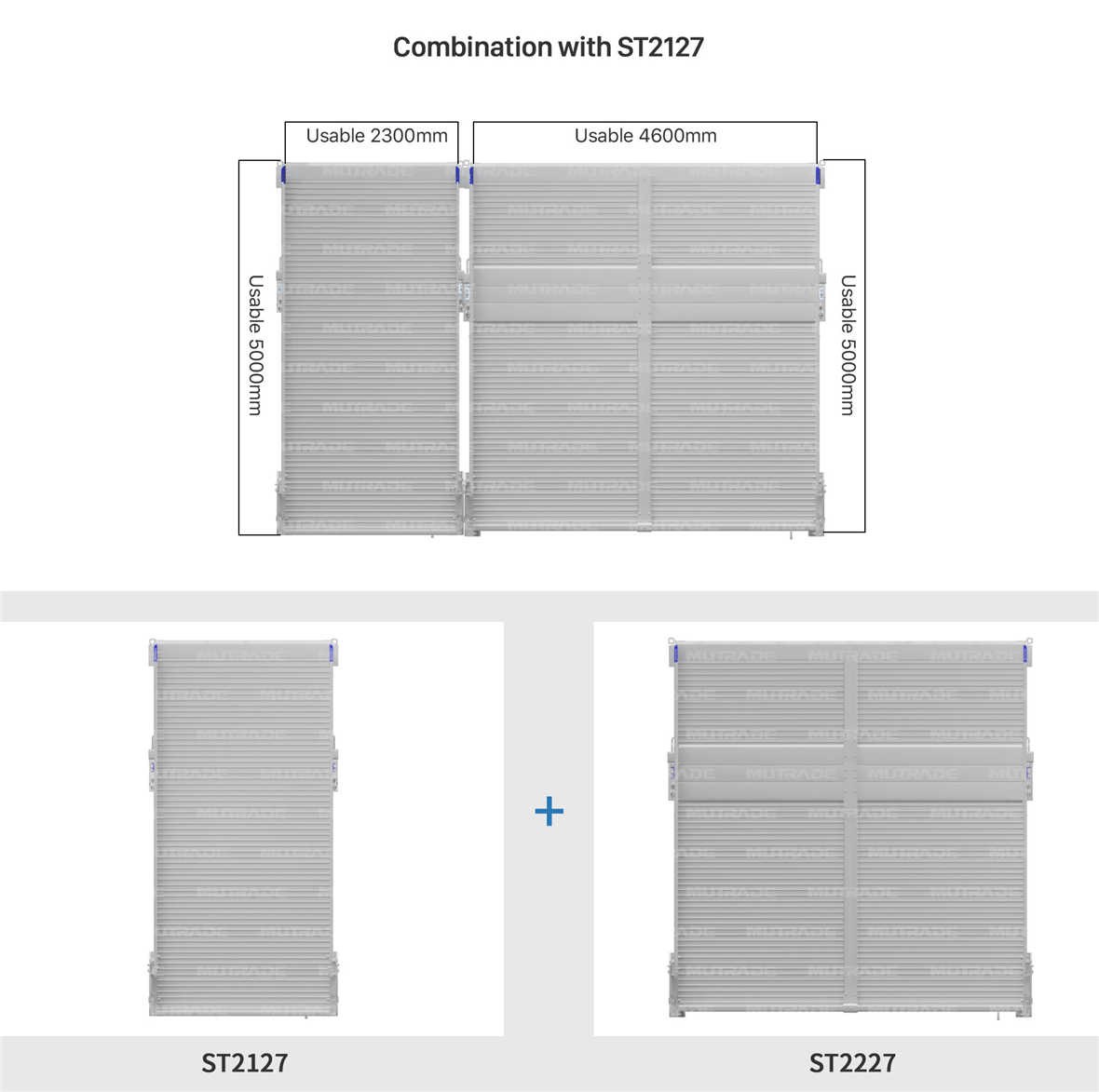

2 cars in a single unit (Starke 2127) and 4 cars in a double unit (Starke 2227) are both available. Parking space loads: 2700 kg. Maximum 1700mm high vehicle can be parked in 1900mm deep pit, and 2300mm usable width is provided in only 2550mm overall width for a single unit, to make full use of the limited space. More available dimensions are optional for different project requirements. The structure should be placed in a pit with certain dimensions and reinforced by fixing posts to walls.

Specifications

Model Starke 2227
Vehicles per unit 4
Lifting capacity 2700kg
Available car length 5000mm
Available car width 2050mm
Available car height 1700mm
Power pack 5.5Kw / 7.5Kw hydraulic pump
Available voltage of power supply 200V-480V, 3 Phase, 50/60Hz
Operation mode Key switch
Operation voltage 24V
Safety lock Dynamic anti-falling lock
Lock release Electric auto release
Rising / descending time <55s
Finishing Powdering coating





Starke 2227

A new comprehensive introduction of Starke-Park series

TUV compliant

TUV compliant, which is the most authoritative certification in the world
Certification standard 2013/42/EC and EN14010

























A new type of hydraulic system of German structure

Germany's top product structure design of the hydraulic system, the hydraulic system is
stable and reliable, maintenance free troubles, service life than the old products doubled.









New design control system

The operation is simpler, the use is safer, and the failure rate is reduced by 50%.

















Galvanized pallet

More beautiful and durable than observed, lifetime made more than doubled













Starke-2127-&-2121_05
Starke-2127-&-2121_06

Further intensification of the main structure of the equipment

The thickness of the steel plate and weld increased 10% compared with the first generation products













Gentle metallic touch, excellent surface finishing
After applying AkzoNobel powder, color saturation, weather resistance and
its adhesion are significantly enhanced

Rich color

Great care is taken with the treatment
of lacquer face, in order to improve
the quality of products on surface
looking to the maximum extent

Strong adhesion

The weather resistance of the spray
powder has better performance under
special technology, which can stand
wear and tear

Superior chains provided by
Korean chain manufacturer

The life span is 20% longer than that of the Chinese chains

Galvanized screw bolts based on the
European standard

Longer lifetime, much higher corrosion resistance

xx_ST2227_1

Laser cutting + Robotic welding

Accurate laser cutting improves the accuracy of the parts, and
automated robotic welding makes the weld joints more firm and beautiful
