Independent Spacesaving Puzzle Car Parking System with a Pit

Independent Spacesaving Puzzle Car Parking System with a Pit

Starke 3127 & 3121

Details

Tags

Introduction

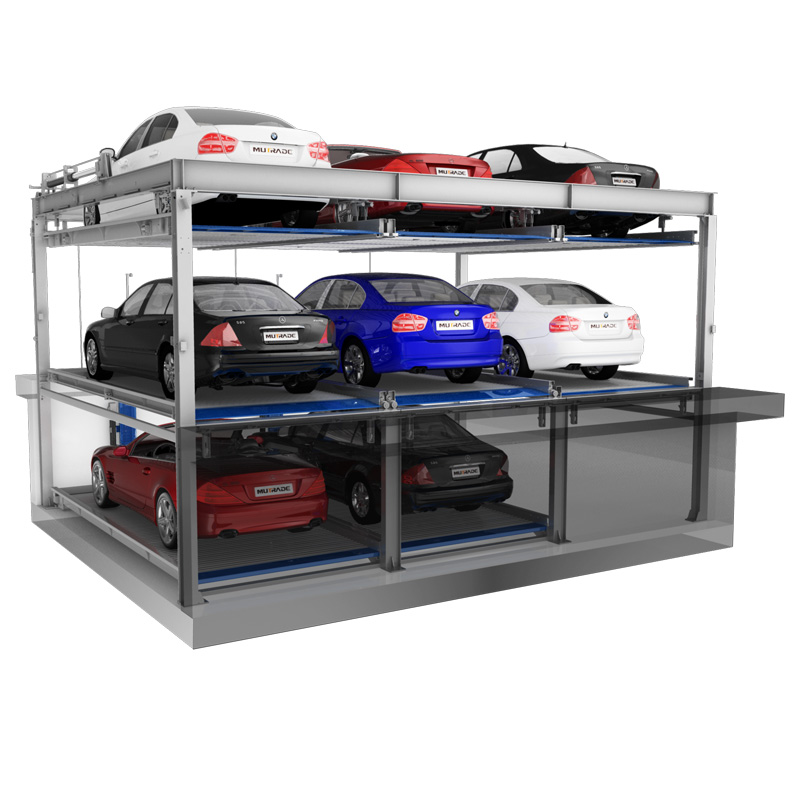

The system is semi-automatic puzzle parking type, one of the most space-saving system that parks three cars on top of each other. One level is in pit and another two on above, the middle level is for access. The user slides his IC card or inputs the space number on operation panel to shift spaces vertically or horizontally and then move his space to entry level automatically. Safety gate is optional to protect cars from theft or sabotage.

- Hydraulic driven
- Capacity of each platform is 2100kg or 2700kg
- Platform width up to 2400mm
- Recommended car spaces in each system < 32 vehicles.
- Programed automatic PLC control
- Operation by ID card or buttons
- Galvanized platform plates
- Foundation pit is required
- Combinable with individual BDP-2 system
- High level quality guarantee (German TUV / CE certified)

Specifications

Model Starke 3127 Starke 3121
Levels 3 3
Lifting capacity 2700kg 2100kg
Available car length 5000mm 5000mm
Available car width 1950mm 1950mm
Available car height 1700mm 1550mm
Power pack 5Kw hydraulic pump 4Kw hydraulic pump
Available voltage of power supply 200V-480V, 3 Phase, 50/60Hz 200V-480V, 3 Phase, 50/60Hz
Operation mode Code & ID card Code & ID card
Operation voltage 24V 24V
Safety lock Anti-falling lock Anti-falling lock
Lock release Electric auto release Electric auto release
Rising / descending time <55s <55s
Finishing Powdering coating Powder coating

Starke 3127 & 3121

A new comprehensive introduction of Starke series

xx

Galvanized pallet

More beautiful and durable than observed,
lifetime made more than doubled









 Larger platform usable width

Wider platform allows users to drive cars onto platforms more easily









Seamless cold drawn oil tubes

Instead of welded steel tube, the new seamless cold drawn oil tubes are adopted to avoid any block inside of tube due to welding









New design control system

The operation is simpler, the use is safer, and the failure rate is reduced by 50%.

High elevating speed

8-12 meters/minute elevating speed makes platforms move to desired
position within half minute, and dramatically reduces user's waiting time













8-12   meters/minute
≤ 30   seconds waiting time (average)

*More stable commercial powerpack

Available up to 11KW (optional)

Newly upgraded powerpack unit system with Siemens motor

*Twin motor commercial powerpack (optional)

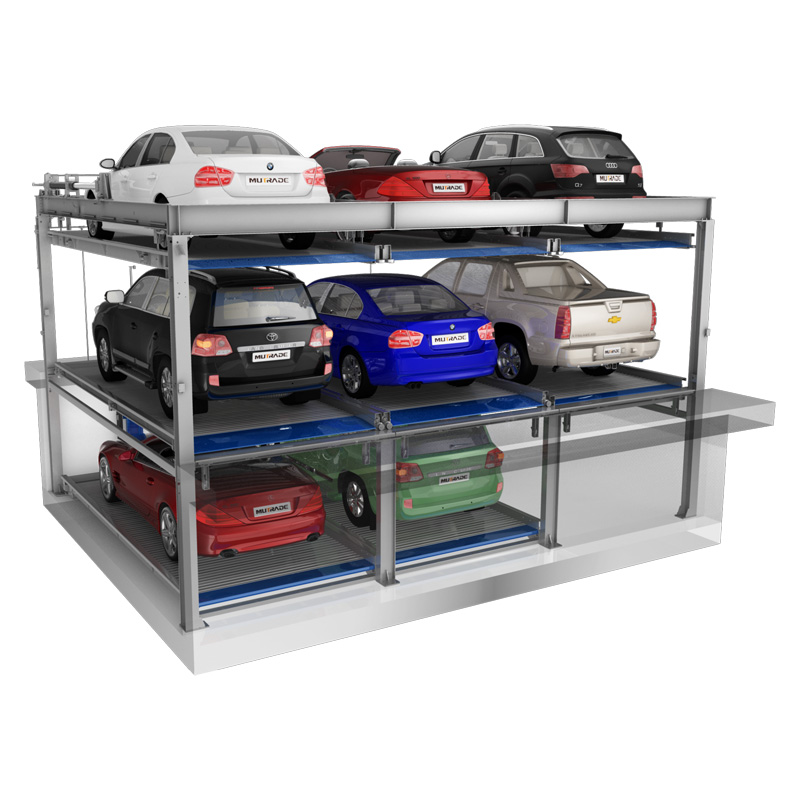

SUV parking available

The reinforced structure allows 2100kg capacity for all platforms

with higher available height to accommodate SUVs

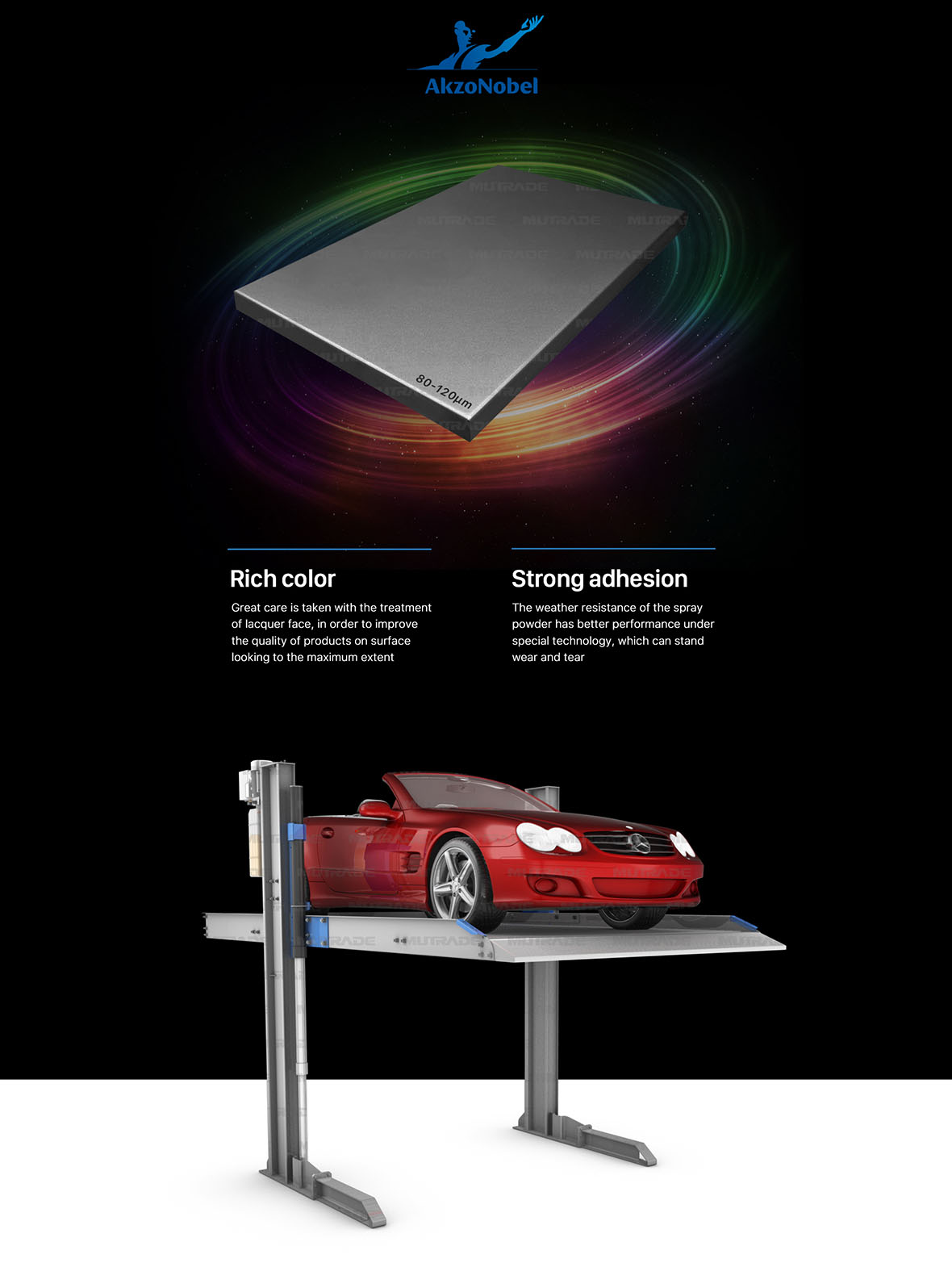

Gentle metallic touch, excellent surface finishing
After applying AkzoNobel powder, color saturation, weather resistance and
its adhesion are significantly enhanced

Stajpgxt

Superior motor provided by
Taiwan motor manufacturer

Galvanized screw bolts based on the European standard

Longer lifetime, much higher corrosion resistance

Laser cutting + Robotic welding

Accurate laser cutting improves the accuracy of the parts, and automated robotic welding makes the weld joints more firm and beautiful
